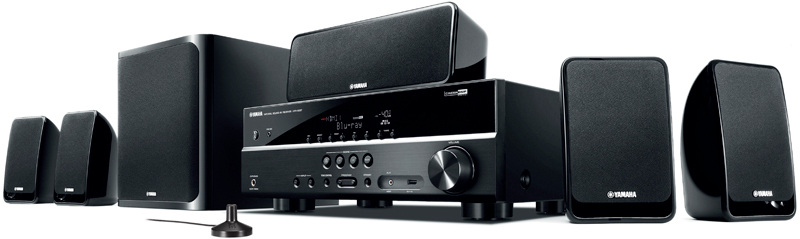

• 5-channel powerful surround sound receiver
• --- 100W per Channel (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
• --- 70W per Channel (6 ohms, 20 Hz-20 kHz, 0.09 % THD, 2 ch driven)
• --- 135W per Channel (6 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
• Discrete amp configuration
• HD Audio decoding with CINEMA DSP (17 DSP programmes)
• 4K Ultra HD pass-through for super high resolution images
• HDMI (4 in / 1 out) with 4K Ultra HD pass-through for super high resolution images
• YPAO sound optimisation for automatic speaker setup
• Extra Bass enriches the powerful bass sound
• Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front

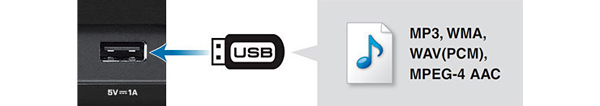

• Front panel USB Digital Connection for iPod / iPhone and USB thumbdrives
• Stylish, curvy speaker design looks fresh in any interior
• ECO mode operation for about 20% less power consumption



made for iPod/iPhone

“Made for iPod and iPhone” means that an electronic accessory has been designed to connect specifically to iPod, iPhone, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
iPod and iPhone are trademark of Apple Inc.

4K Pass-Through

4K Pass Through receives super high-def resolution video and pass it to a 4K compatible monitor.
This ensures compatibility with the latest super high resolution video formats.

Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up to 8 discrete channels of 24-bit/96 kHz audio simultaneously. Dolby TrueHD also remains fully compatible with the existing multichannel audio systems and retains the metadata capability of Dolby Digital, allowing dialog normalization and dynamic range control.
Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

dts-HD

DTS-HD Master Audio is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. This model supports DTS-HD Master Audio decoding in 5-channel system.
DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc

CINEMA DSP Digital

 Since the Dolby Surround and DTS systems were originally designed for use in movie theaters, their effect is best felt in a theater having many speakers designed for acoustic effects. Since home conditions, such as room size, wall material, number of speakers, and so on, can differ so widely, it is inevitable that there are differences in the sound heard. Based on a wealth of actually measured data, Yamaha CINEMA DSP provides the audiovisual experience of a movie theater in the listening room of your own home by using the Yamaha original sound field technology combined with various digital audio systems.
･ The actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

YPAO Automatic System Calibration

Yamaha’s YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!

SCENE – A NEW LEVEL OF OPERATING EASE

With most AV components, watching or listening to what you want requires a number of steps. You have to turn on the AV component, turn on another component like a DVD player, select the source, select the surround mode and then press play. But with Yamaha’s SCENE feature all you need to do is press one button. Both components turn on, the correct DSP setting is made, and play begins. This SCENE function allows you to change input sources and sound field programmes with one button. Four SCENE buttons are available for different usages, such as playing movies or music.

Compressed Music Enhancer

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.

SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

ECO mode

ECO mode reduces power consumption by about 20%*. It can be set easily from the top of the GUI/OSD menu.
*Compared to power consumption when ECO mode is off. (Yamaha measurement).

HDMI

HDMI (High-Definition Multimedia Interface) is the first industrysupported, uncompressed, all-digital audio/video interface. Providing an interface between any source (such as a set-top box or AV receiver) and an audio/video monitor (such as a digital television), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website
at “http://www.hdmi.org/”.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

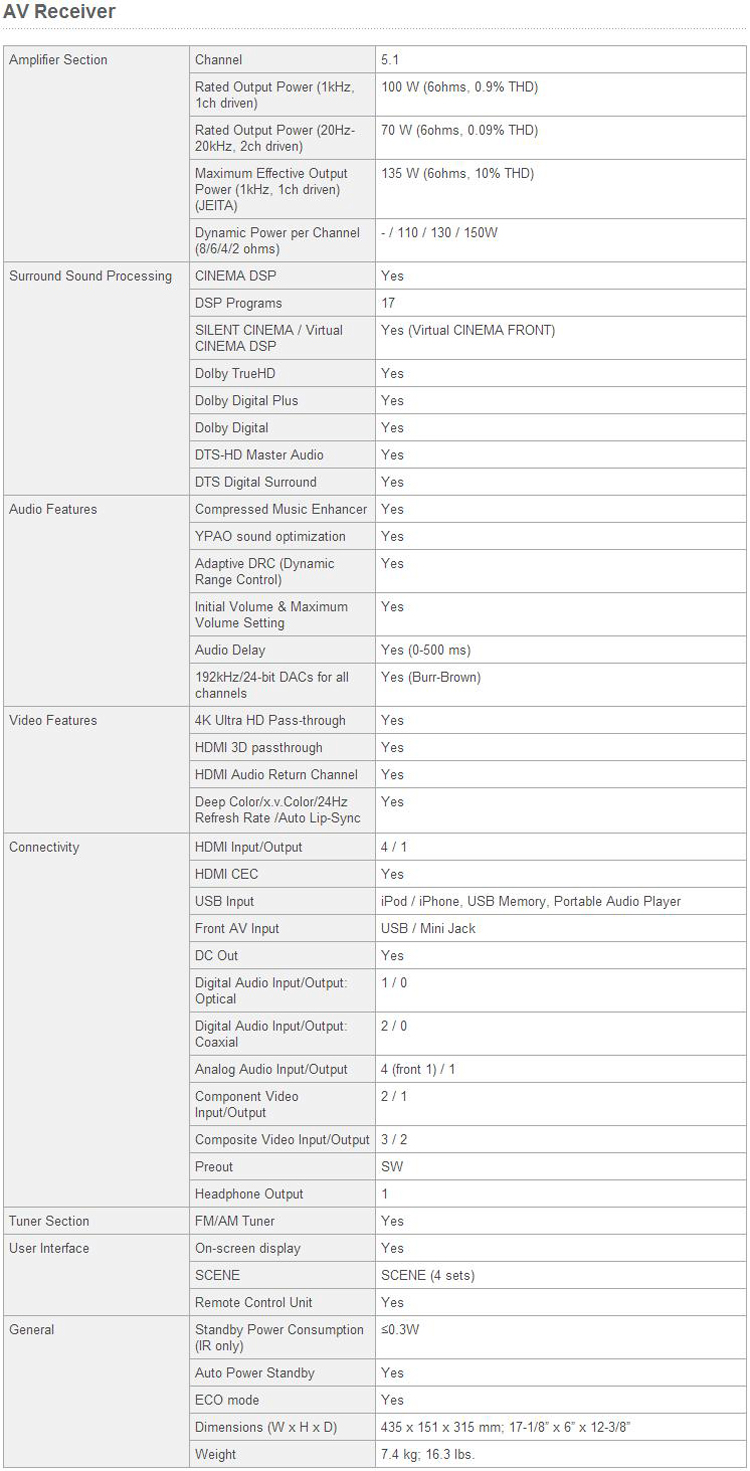

Especificaciones
