All this and more in a one-body unit with built-in subwoofer that offershigh sound quality and exhilarating surround sound.

Integrated system equipped with dual front speakers and dual built-in subwoofers
- Advanced Bass Extension Processing (surround mode only) delivers a surprising abundance of bass sound
- Large volume cabinet reproduces TV sound with high sound quality
- Dual-driver subwoofer delivers powerful bass sounds
AIR SURROUND XTREME provides powerful surround sound
Clear Voice and UniVolume
Slim, low-profile, one-body design allows positioning in front of a TV
Built-in IR Flasher for TV remote control signal transmission
Stylish design achieves both visual beauty and ease of use

Integrated System with Dual Front Speakers and Subwoofer

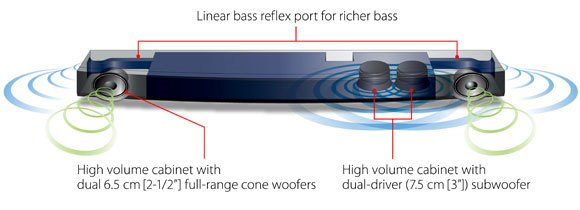

The YAS-93 combines two 6.5 cm [2-1/2”] cone speakers with a dual-driver (7.5 cm [3”] cones) subwoofer, driven by a digital amp with a total output of 120W. Yamaha's original Advanced Bass Extension Processing (surround mode only) delivers a surprising abundance of bass for the size, so you never feel the lack of strong bass sound. Although compact, its excellent structural design provides a large volume enclosure for both speakers and subwoofer. The result is powerful, high quality sound that makes TV and movies much more enjoyable.

Dual-Driver Subwoofer Powerfully Reproduces Bass Sounds

The dual-driver subwoofer employs large magnets and large-diameter voice coils to realise dynamic and robust bass sound reproduction. This ensures that the overall sound has a rich sense of presence, making movie effect sounds more realistic.

Bass Reflex Port Contributes to Deeper, Richer Bass

The YAS-93 employs a bass reflex port that has a straight shape and adequate length to provide outstanding bass response together with the large volume cabinet. The duct outlet is shaped like a trumpet bell, which reduces wind noise for better sound clarity.

Saran Net Grille Enhances Sound Definition

The grille protecting the speaker unit is a saran net that allows unimpeded sound flow. All sounds, including vocals and music, are clear and pleasant to listen to.

AIR SURROUND XTREME Provides Powerful Surround Sound

Yamaha’s exclusive AIR SURROUND XTREME reproduces 7.1-channel surround sound with high quality, excellent imaging and rich presence, far superior to that of any other soundbar. You’ll experience an extremely realistic and impressive sound field, with clear dialogue in the front and dynamic sound action at the back.

Compatible with Various Surround Sound Formats

The YAS-93 is compatible with popular surround sound formats, such as Dolby Digital and DTS Digital Surround, so you get the full effect of multichannel movie sound.

TV Remote Repeater for Signal Transmission

Even if the YAS-93 blocks the TV’s remote control signal, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected.

Clear Voice Makes Dialogue and Narrations Easy to Hear

Clear Voice raises the level of dialogue and narrations while maintaining overall sound quality. Movies and TV shows, sports commentary and news broadcasts are more clearly audible.

UniVolume Maintains the Same Volume Level

This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, programmes, commercials and input sources. It can be switched on and off.

CARACTERISTICAS
• Potencia de Salida:	(Front L/R) 30 W + 30 W (Subwoofer) 60 W
• Consumo:	22 W
• Consumo en StandBy:	0,5 W
• Woofers:	Dual de 2,5"
• Subwoofer:	Dual de 3"

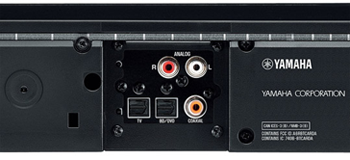

• Digital Optica:	2 entradas.
• Digital Coaxial:	1 entrada.
• Audio Analogo:	1 entrada.
• Tecnologia Surround:	Si. AIR SURROUND XTREME
• UniVolume:	Si
• Dolby Digital:	Si
• Dolby Pro Logic II:	Si
• DTS:	Si
DIMENSIONES
• Ancho (mm.)	890 mm.
• Alto (mm.)	109 mm.
• Profundidad (mm.)	121 mm.
• Peso (Kg.)	4 kg.
