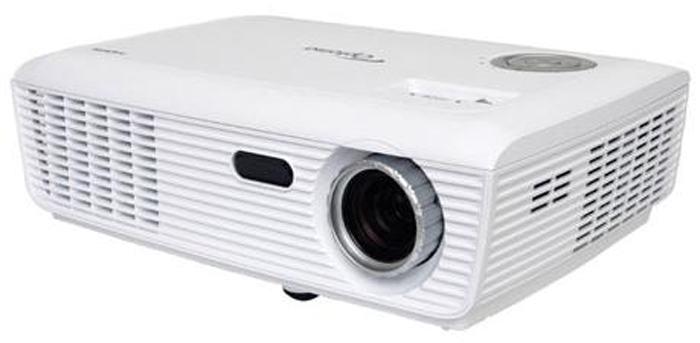

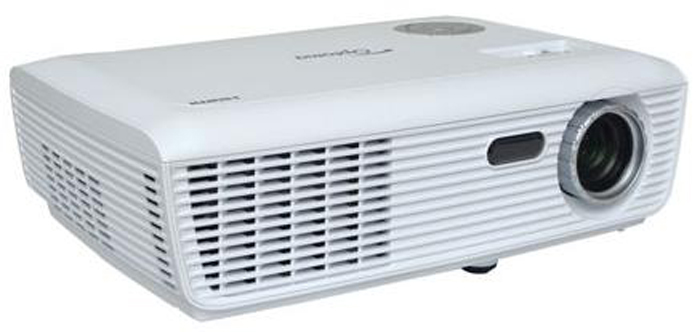

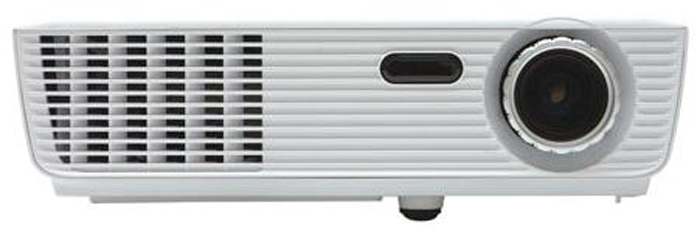

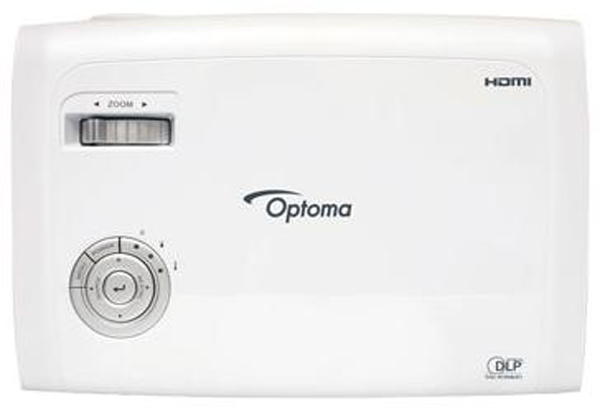

Breathtaking and bold, the Optoma HD66 home theater projector provides stunningly beautiful widescreen viewing. With 2500 ANSI lumens and 4000:1 contrast, the HD66 delivers subtle details and striking clarity for pure viewing delight.

* 3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card. Please visit www.optoma.com for more information.

DLP® by Texas Instruments with BrilliantColor™ Technology

Bright images and high contrast ratio – 2500 ANSI lumens and
4000:1 contrast ratio (full on/full off)

Rapid power-on and shutdown – saving you time and money

Longer lamp life – up to 4000 hrs

3D Capability

Using the inherent speed of DLP technology, select Optoma projectors can output video and images at an astonishing rate of 120Hz allowing you to view colorful stereoscopic 3D full screen image.

The 3D effect is generated by splitting the 120Hz signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D active shutter glasses synchronize with the on-screen image to filter each stream to the left and right eye. Your brain then combines the two streams to provide a three dimensional image. Optoma 3D enabled projectors can be used with compatible 3D PC based content. Examples of 3D content includes educational software, video games and design/modeling programs.

Optoma projectors cannot be used to display 3D TV broadcasts or 3D Blu-ray discs. Optoma projectors may support these applications in the future but will require additional hardware at extra cost.

3D source, 3D content and active LCD shutter glasses are required



SPECIFICATIONS

Display Technology	Single 0.65” DMD DLP Technology by Texas Instruments
Resolution	HD (1280x720)
Brightness (Typical)	2500 ANSI Lumens
Contrast Ratio	4000:1 (Full On/Full Off)
Lamp Life and Type	4000/3000 Hours (STD/Bright) 185W P-VIP
Throw Ratio	1.55 to 1.7 (Distance/Width)
Projection Distance	3.28’ to 32.8’ (1.0 to 10m)
Image Size (Diagonal)	27.2” to 301” (0.69 to 7.65m)
Offset	112%
Displayable Colors	1.07 Billion
Uniformity	85%
Audio	2-Watt Speaker

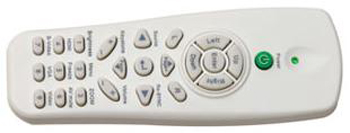

Remote Control	IR Remote
Computer Compatibility	UXGA, WXGA, SXGA+, SXGA, XGA,SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video Compatibility	NTSC, PAL, SECAM, SDTV (480i), EDTV(480p), HDTV (720p, 1080i/p)
3D Compatibility	120Hz Frame Sequential 3D for Resolutions Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i
Projection Lens	F=2.41-2.55 to F=2.5-2.67, 1.1x Manual Zoom and Focus
User Controls	Complete On-Screen Menu Adjustments in 23 Languages

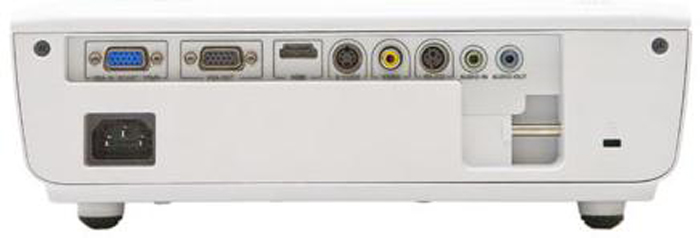

I/O Connectors	HDMI, VGA-In, S-Video, Composite Video, Stereo Audio-In and RS-232
Security	Kensington® Lock Port, Security Bar and Keypad Lock
Projection Method	Front, Rear, Ceiling Mount, Table Top
Weight	5.1 lbs (2.31kg)
Dimensions (W x H x D)	11.28” x 3.98” x 7.6” (287 x 101 x 193 mm)
Noise Level (STD/Bright)	28dB/30dB
Keystone Correction	±40° Vertical
Horizontal Scan Rate	15.3 - 91.1 KHz
Vertical Refresh Rate	24 - 120 Hz
Operating Temperature	41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply	AC Input 100-240V, 50-60Hz, Auto-Switching
Power Consumption	255 Watts (Bright), 207 Watts (STD), <1 Watt (Standby)
Standard Accessories	AC Power Cord, Composite Cable, VGA to Component Cable, Remote Control, Batteries for Remote, Lens Cap, Multilingual CD-ROM User’s Manual, Quick Start Card and Warranty Card
Optional Accessories	HDMI cable, Ceiling Mount, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens
