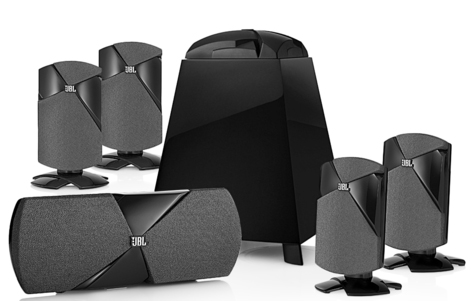

General Specifications
Series |
Cinema Series |
Finish |
Black |
Audio Specifications
Satellite Sensitivity |
(2.83V@1m) 86dB |
Subwoofer_Frequency Response |
(-6dB) 32Hz-150Hz |
Satellite Crossover Frequencies |
3.7kHz |
Speaker Crossover Frequencies |
3.7kHz |
Subwoofer Maximum Recommended Amplifier Power |
150W |
Speaker Maximum Recommended Amplifier Power |
100W |
System Frequency Response |
(-6dB) 32Hz–20kHz |
Satellite Nominal Impedance |
8 ohms |
Speaker Sensitivity |
(2.83V@1m) 89dB |
Subwoofer Crossover Frequency |
50Hz-200Hz (variable) |
Speaker Nominal Impedance |
8 ohms |
System Specifications
Satellite Maximum Recommended Amplifier Power |
100W |
Number of Channels |
5.1 |
Subwoofer Power Requirement |
120V/60Hz, 150W (US); 220V/50Hz, 150W (EU) |
Power Requirement |
120V/60Hz, 150W (US); 220V/50Hz, 150W (EU) |
Power Consumption (Full Power/Idle) |
300W (2.5A@120V) peak; <1W (8mA@120V) standby |
Satellite Speaker Specifications
Satellite Enclosure Type |
Sealed |
Satellite Wall-Mount Capable |
Yes |
Satellite High-Frequency Transducer |
1" (25mm) titanium-laminate dome, video-shielded |
Satellite Low-Frequency Transducer |
3" (75mm) PolyPlasTM cone, video-shielded |

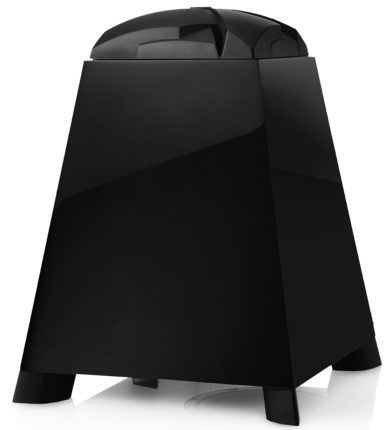

Subwoofer Specifications
Subwoofer Controls |
Volume, crossover frequency, phase |
Subwoofer_Enclosure Type |
Ported (down-firing) |
Subwoofer Low-Frequncy Transducer |
8" (200mm) cone (down-firing) |
Subwoofer Connections |
Left and right RCA line-level inputs, LFE inputs |
Control and Connection Specifications
Connections |
(Subwoofer) Left and Right RCA line-level inputs, LFE inputs; (Satellite/Center Speakers) Push-spring terminals |

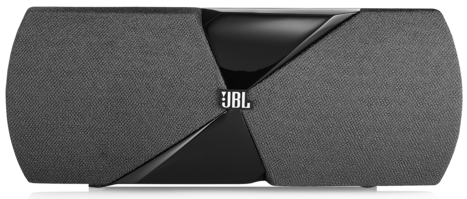

Speaker Specifications
Speaker Wall-Mount Capable |
Yes |
Speaker High-Frequency Transducer |
1" (25mm) titanium-laminate dome, video-shielded |
Speaker Low-Frequency Transducer |
Dual 3" (75mm) PolyPlas cones, video-shielded |
Speaker Enclosure Type |
Sealed |
Dimensions
Satellite Depth (in) |
3-3/8 |
Satellite Height (in) |
9-1/4 |
Satellite Height (mm) |
235 |
Satellite Weight (kg) |
0.9 |
Satellite Weight (lb) |
2 |
Satellite Width (in) |
4-3/4 |
Satellite Width (mm) |
121 |
Speaker Depth (in) |
3-3/8 |
Speaker Depth (mm) |
86 |
Speaker Height (in) |
4-7/8 |
Speaker Height (mm) |
124 |
Speaker Weight (kg) |
1.45 |
Speaker Weight (lb) |
3.2 |
Speaker Width (in) |
12 |
Speaker Width (mm) |
305 |
Subwoofer Depth (in) |
14 |
Subwoofer Depth (mm) |
355 |
Subwoofer Height (in) |
19 |
Subwoofer Height (mm) |
483 |
Subwoofer Weight (kg) |
10 |
Subwoofer Weight (lb) |
22 |
Subwoofer Width (in) |
14 |
Subwoofer Width (mm) |
355 |
System Weight (kg) |
15.45 |
System Weight (lb) |
33.2 |
|
|
